prx#

Single-qubit PRX gate.

The phased x rotation (PRX) gate is defined as

\[R_\phi(\theta) = e^{-i (X \cos \phi + Y \sin \phi) \: \theta/2} = R_z(\phi) R_x(\theta) R_z^\dagger(\phi),\]

where the rotation angle \(\theta\) and the phase angle \(\phi\) are in radians.

It rotates the qubit state around an axis that lies in the XY plane of the Bloch sphere.

Full path: iqm.pulse.gates.prx

Functions

Unitary for a PRX gate.

Classes

`ABC_Constant_smooth`	ABC class for creating gates with an arbitrarily long Constant pulses with smooth rise and fall.
`Constant_PRX_with_smooth_rise_fall`	Constant PRX pulse with cosine rise and fall padding.
`PRX_CustomWaveforms`	ABC for PRX gates implemented using a single IQ pulse and hot-swappable waveforms.
`PRX_CustomWaveformsSX`	ABC for PRX gates implemented using SX gate, hot-swappable waveforms and phase manipulation.
`PRX_DRAGCosineRiseFall`	PRX gate, DRAG / CosineRiseFall IQ pulse implementation.
`PRX_DRAGCosineRiseFallSX`	PRX gate, DRAG / CosineRiseFall IQ pulse with VZ implementation.
`PRX_DRAGGaussian`	PRX gate, DRAG / TruncatedGaussian IQ pulse implementation.
`PRX_DRAGGaussianSX`	PRX gate, DRAG / Gaussian IQ pulse with VZ implementation.
`PRX_FastDrag`	PRX gate, FAST DRAG IQ pulse based on amplitude scaling.
`PRX_FastDragSX`	PRX gate, FAST DRAG IQ pulse with VZ-based SX-implementation.
`PRX_GateImplementation`	ABC for different implementations of the PRX gate.
`PRX_HdDrag`	PRX gate, HD DRAG IQ pulse based on amplitude scaling
`PRX_HdDragSX`	PRX gate, HD DRAG IQ pulse with VZ-based SX-implementation.
`PRX_ModulatedCustomWaveForms`	ABC for PRX gates with modulated frequency, hot-swappable waveforms.
`PRX_ModulatedDRAGCosineRiseFall`	Modulated PRX pulse with cosine rise fall waveform
`PRX_SinglePulse_GateImplementation`	ABC for PRX gates implemented using a single IQ pulse.

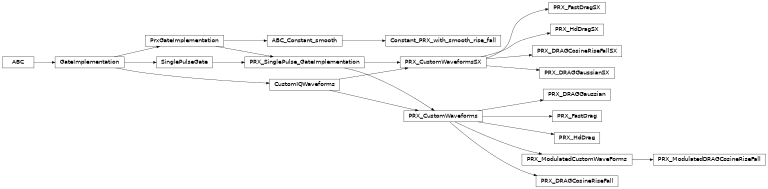

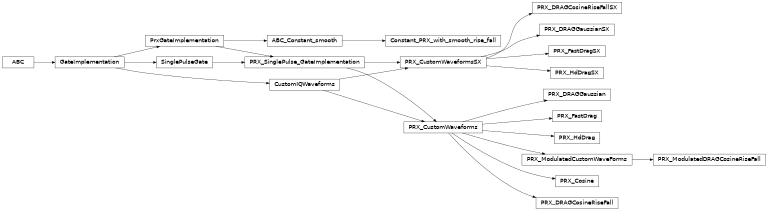

Inheritance
