measure

Projective measurement in the Z basis.

Full path: iqm.pulse.gates.measure

Module Attributes

SHELVED_OFFSET_TOLERANCE

Tolerance for the absolute value of shelved measure second_prx_12_offset calibration value being considered zero.

Classes

Measure_Constant	Implementation of a single-qubit projective, dispersive measurement in the Z basis.
Measure_Constant_Qnd	Implementation of a single-qubit projective, non quantum demolition, dispersive measurements in the Z basis.
Measure_CustomWaveforms	Base class for implementing dispersive measurement operations with custom probe pulse waveforms.
ProbePulse_CustomWaveforms	Base class for implementing a probe line measurement pulse with custom waveforms in the I and Q channels.
ProbePulse_CustomWaveforms_noIntegration	Base class for implementing a probe line probe pulse with custom waveforms in the I and Q channels without any integration.
Probe_Constant	Implementation of a single-qubit projective, dispersive measurement in the Z basis.
ShelvedMeasureTimeBox	TimeBox representing a shelved measurement (ReadoutTrigger sandwiched between two PRX_12 operations).
Shelved_Measure_Constant	Implementation of a shelved readout.
Shelved_Measure_CustomWaveforms	Base class for shelved readout.

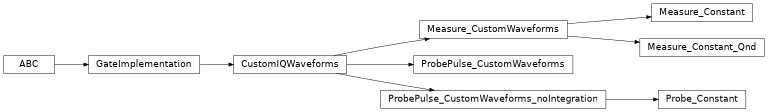

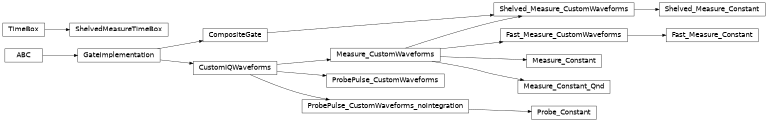

Inheritance
