cz

Two-qubit controlled-Z (CZ) gate.

The CZ gate flips the relative phase of the \(|11⟩\) state. It can be represented by the unitary matrix

\[\begin{split}\text{CZ} = \begin{pmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & -1 \end{pmatrix}\end{split}\]

Full path: iqm.pulse.gates.cz

Functions

round_to_granularity(value, granularity[, ...])	Round a value to the nearest multiple of granularity.
split_flat_top_part_into_granular_parts(...)	To save waveform memory, a (long) flat-top pulse, which is defined by its duration, full_width and rise_time, is divided into three consecutive parts (rise, flat, and fall), all of which conform to the granularity of the device.

Classes

CZ_CRF	CZ gate using a CosineRiseFall flux pulse on the coupler.
CZ_CRF_ACStarkCRF	Controlled-Z two-qubit gate.
CZ_GaussianSmoothedSquare	CZ gate using a GaussianSmoothedSquare flux pulse on the coupler.
CZ_Slepian	CZ gate using a Slepian flux pulse on the coupler.
CZ_Slepian_ACStarkCRF	Controlled-Z two-qubit gate.
CZ_Slepian_CRF	CZ gate using a Slepian flux pulse on the coupler and a CosineRiseFall flux pulse on the qubit.
CZ_TruncatedGaussianSmoothedSquare	CZ gate using a TruncatedGaussianSmoothedSquare flux pulse on the coupler.
CouplerFluxPulseQubitACStarkPulseGate	Base class for CZ gates with coupler flux pulse and a qubit AC Stark pulse.
FluxPulseGate	Discrete two locus component gate implemented using flux pulses, virtual RZs, and the interaction mediated by the coupler.
FluxPulseGate_CRF_CRF	CZ gate using a CosineRiseFall flux pulse on the coupler and on the qubit.
FluxPulseGate_SmoothConstant	Flux pulse gate implementation realized as a 3-part pulse sequence, consisting of |cosine rise|Constant|cosine fall|.
FluxPulseGate_TGSS_CRF	CZ gate using a TruncatedGaussianSmoothedSquare flux pulse on the coupler and a CosineRiseFall flux pulse on the qubit.
FluxPulse_SmoothConstant_SmoothConstant	Constant flux pulse on both qubit and coupler with smooth rise/fall.
FluxPulse_SmoothConstant_coupler	Constant flux pulse on coupler with smooth rise/fall.
FluxPulse_SmoothConstant_qubit	Constant flux pulse on qubit with smooth rise/fall

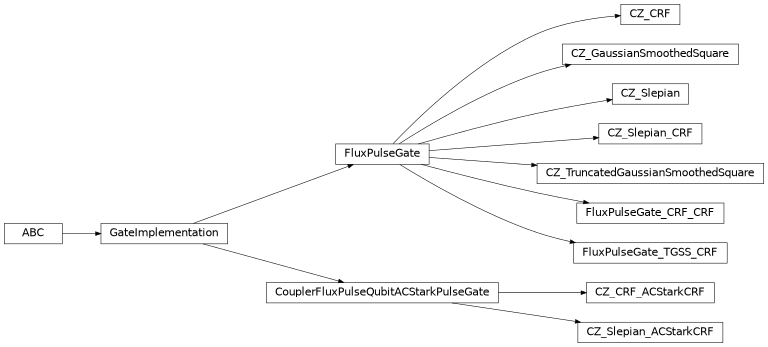

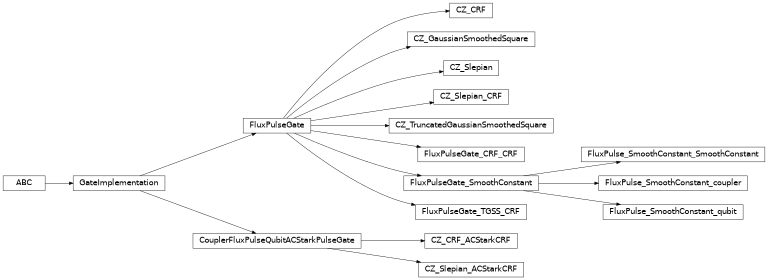

Inheritance
